I've done a huge amount of work lately and have taken many photos, but tonight, things came together and I'll only show the final result. I've paid attention to every last detail while putting it together. Every washer has been polished or replaced with stainless steel, everything has been restored to a brand new condition, or better.

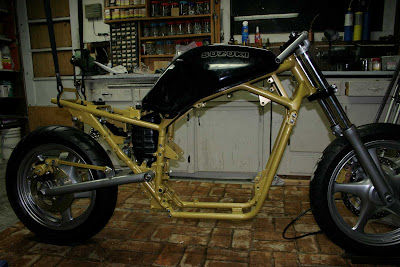

I think I can finally claim a 'rolling chassis':
and with the right shock on, this time (I'm waiting for a new bolt for the bottom of the shock. Stock was too stripped to use I realized at the last moment)
Love it or hate it, it's been bobbed for real. Just enough room for my butt and a tiny rear cowling. Cowling will overhang the end of frame a bit.
And for comparison sake, I plopped the original seat on the top. My seat will sit much lower and there will be very little gap between bottom of seat and frame.
On the way is a complete photo documentation of my front-porch home-brew anodizing setup. I just finished anodizing my brakelight mount, rearsets, and rear shock pieces with excellent results. More to come soon...
