Front brake caliper rebuild

And the front caliper! Jeez, I wanted to show before and after pictures, but failed to take a close-up of the front brake caliper before I reworked it.

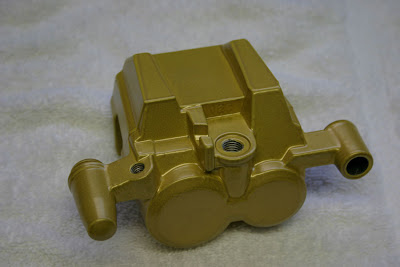

Just coated (you can see they messed up and coated the round where the brake line attaches:

And the other side:

You can see above that the machined surfaces are pretty dirty. I even sanded those out before I got them coated. So, I spent another hour making this one nice.
Started by scraping off the coating around the brake line connection:
This took for-bloody-ever and was very annoying. Again, I chased all the threads, sanded out the machined surfaces, polished where the pistons sit, and scraped off any over spray and built up coating.
Laying out my parts:
New parts:
cylinder seals
mounting bolts
bleeder bolt cap
rubber covers
brake pads

Re-used parts:
bleeder bolt
mounting piece
piston inserts

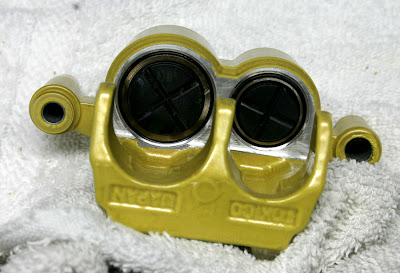

Cylinders and seals in, with everything cleaned up:
And, oh crap, I don't have new brake pads yet, nor have I dressed up the mounting piece! Well, I'll do what I can for today then stash it up on the shelf 'til I get the other items resolved:
